Complete Industrial Pressure & Process Recording System
Eliminate manual log sheets and streamline your plant operations with the Fainlynx PDM-200 Process Data Monitoring & Data Logging Solution. This pre-configured bundle pairs a high-accuracy industrial pressure transmitter with a multi-channel paperless recorder—providing real-time display, secure digital data logging, and seamless export for compliance and analysis.
Ideal Applications: HVAC, water treatment plants, industrial gas monitoring, and manufacturing facility management.
Key Features & Benefits
- Paperless Digital Logging: Automatically logs pressure data at custom intervals to internal memory or USB. No ink, chart paper, or manual recording required.
- Real-Time Visual Display: Bright multi-channel display for instant, accurate pressure and process status readouts on the factory floor.
- High-Accuracy Sensor Integration: Heavy-duty pressure transmitter built to perform reliably in harsh operational environments.
- Compliance Ready: Simple CSV/Excel data extraction via USB for audit trails, quality control, and client reporting.
- Plug-&-Play Integration: Pre-configured and tested prior to dispatch for quick installation and minimal site downtime.
System Specifications
- Model Code: FL-PDM200-PT
- System Type: Multi-Channel Process Data Logging & Monitoring
- I/O Specs: 2x Analog Inputs (4–20mA) | 2x Digital Relay Outputs
- Communication Protocol: Modbus RTU / RS485
- Input Signal: 4–20mA
- Measurement Target: Pressure (Customizable for Temperature/Flow)
- Data Storage: USB Flash Drive / SD Card Support (CSV format)
- Power Supply: 220V AC / 24V DC
- Mounting Options: Panel Mount / Desktop Installation
What’s Included in the Package?

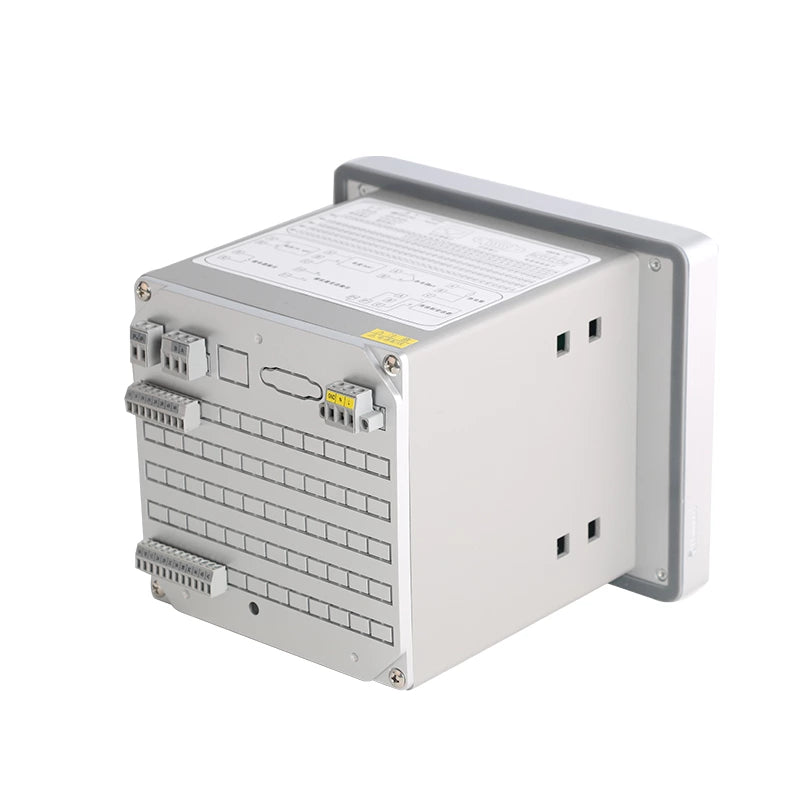

- 1x Digital Paperless Data Recorder Unit (FL-PDM200) — 2 Analog Inputs (4–20mA), 2 Digital Relay Outputs, Modbus

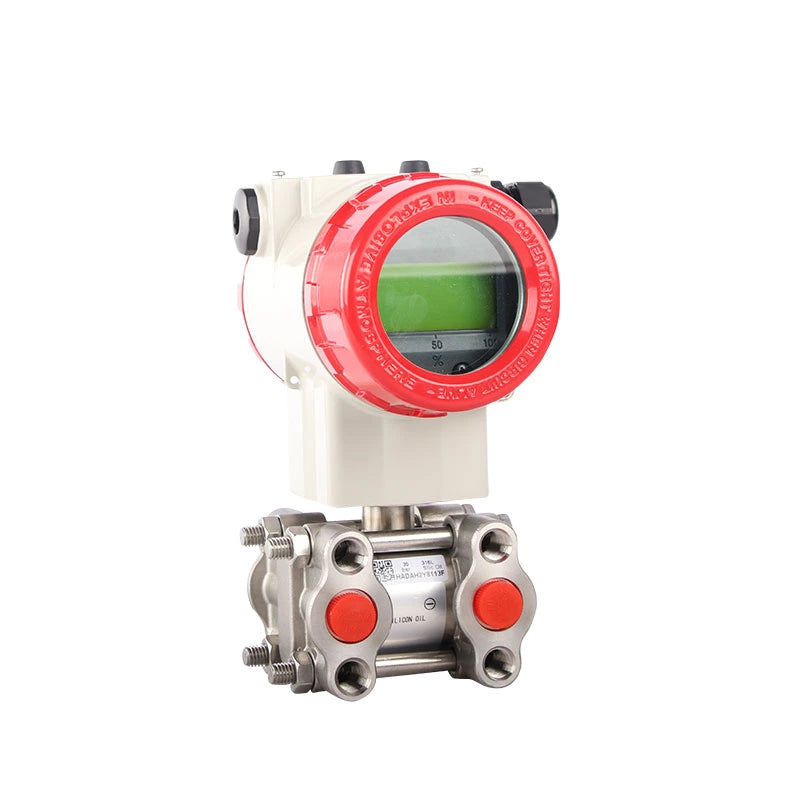

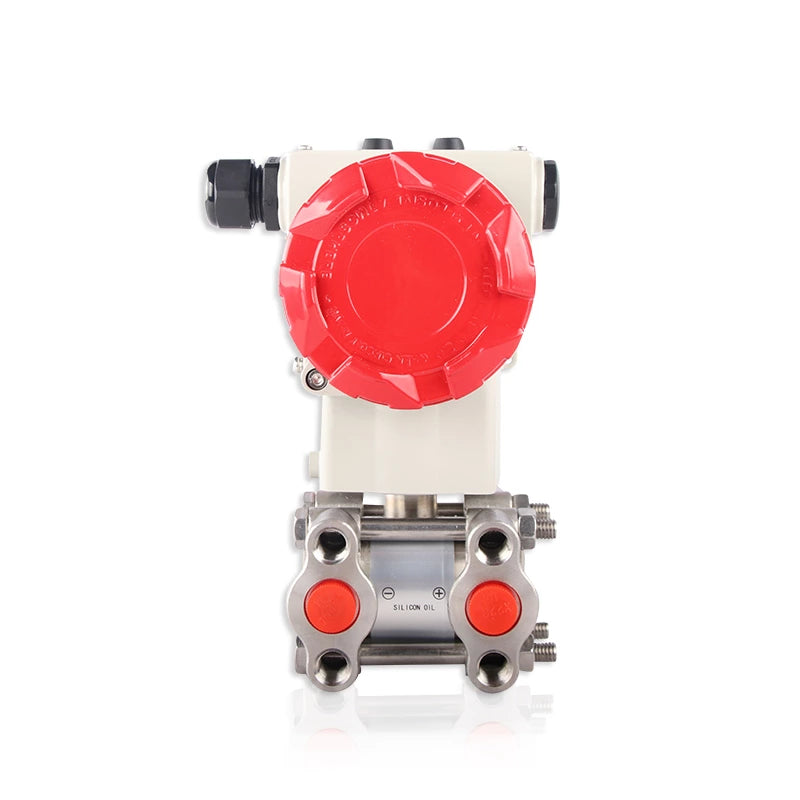

- 1x High-Precision Industrial Pressure Transmitter
- Pre-wiring (upon request)
- User Manual & Wiring Diagram
Need a Custom Configuration or Project Quote?
We can customize pressure ranges, add additional sensors (temperature/flow), or provide on-site setup assistance.
