Digital Real-Time Air Filter & AHU Pressure Monitoring System
Upgrade your air handling units (AHU), cleanrooms, and filter banks with continuous digital pressure tracking. The Fainlynx FLX-DPT200 Series features a high-precision digital differential pressure transmitter with a built-in backlit LCD display, native RS485 Modbus communications, integrated duct mounting hardware, and optional wireless cloud integration.
Eliminate manual paper logs, prevent premature filter replacements, and get real-time pressure alerts directly to your phone or BMS. Distributed by Signal Transmission (M) Sdn Bhd.
⚠️ Scope of Supply & Gateway Notice:
• All packages are sold on a Hardware Supply-Only basis. On-site cable pulling, duct mounting, and Testing & Commissioning (T&C) are strictly optional services.
• First-Time Cloud Deployments: Wireless cloud packages require a Fainlynx LoRaWAN Gateway. First-time buyers must select the Turnkey Cloud Suite. The Wireless Node Expansion is strictly reserved for existing clients expanding an established Fainlynx gateway network.
📦 Select Your Package Level
Choose the option that fits your current site infrastructure:
| Package Name | What's Inside The Box? | Connection Type | Best For |
|---|---|---|---|
| 1. Local Display Kit | • FLX-DPT200 Sensor (Includes Duct Mount & Tubing) | Wired RS485 Modbus | Wired BMS / PLC connection on site |
| 2. Wireless Node Expansion | • FLX-DPT200 Sensor (With Duct Mount & Tubing) • FLX-UC100 Wireless Node |
Wireless LoRaWAN Radio | Existing clients with a gateway already installed on site |
|
3. Turnkey Cloud Suite (Recommended) |
• FLX-DPT200 Sensor (With Duct Mount & Tubing) • FLX-UC100 Wireless Node • Milesight UG65 Gateway • 1-Year Fainlynx Cloud Pass |
Full Wireless Cloud System | First-time buyers needing a complete plug-and-play cloud setup |
Key Features & Benefits
- 📺 Live On-Site LCD Display: High-visibility digital screen shows real-time differential pressure (Pa) directly at the AHU or cleanroom wall.
- 📡 RS485 Modbus RTU Native: Seamlessly integrates with local BMS or wireless IoT transceivers.
- 📱 Automated Cloud Alerts: Pair with Fainlynx Cloud for instant Email notifications when filter pressure drop reaches critical limits.

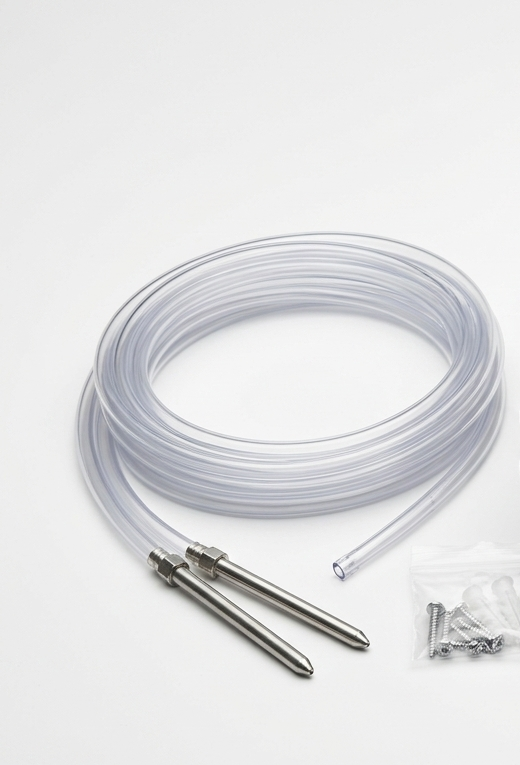

- 🛠️ Integrated Duct Mounting: Comes complete with integrated duct mounting bracket and 2m clear PVC pressure tubing ready for immediate installation.
☁️ What is Fainlynx Cloud?
Fainlynx Cloud is an online dashboard accessible on mobile or desktop that receives data sent wirelessly from the UG65 Gateway.
- Live Web/Mobile Dashboard: Track pressure drops across all AHU filters in one centralized view.
- Instant Email Alerts: Receive automated email notifications the moment pressure crosses your set limit so filters can be replaced before airflow drops.
- Audit-Ready Logs: Store and download historical trend reports for compliance.
System Architecture

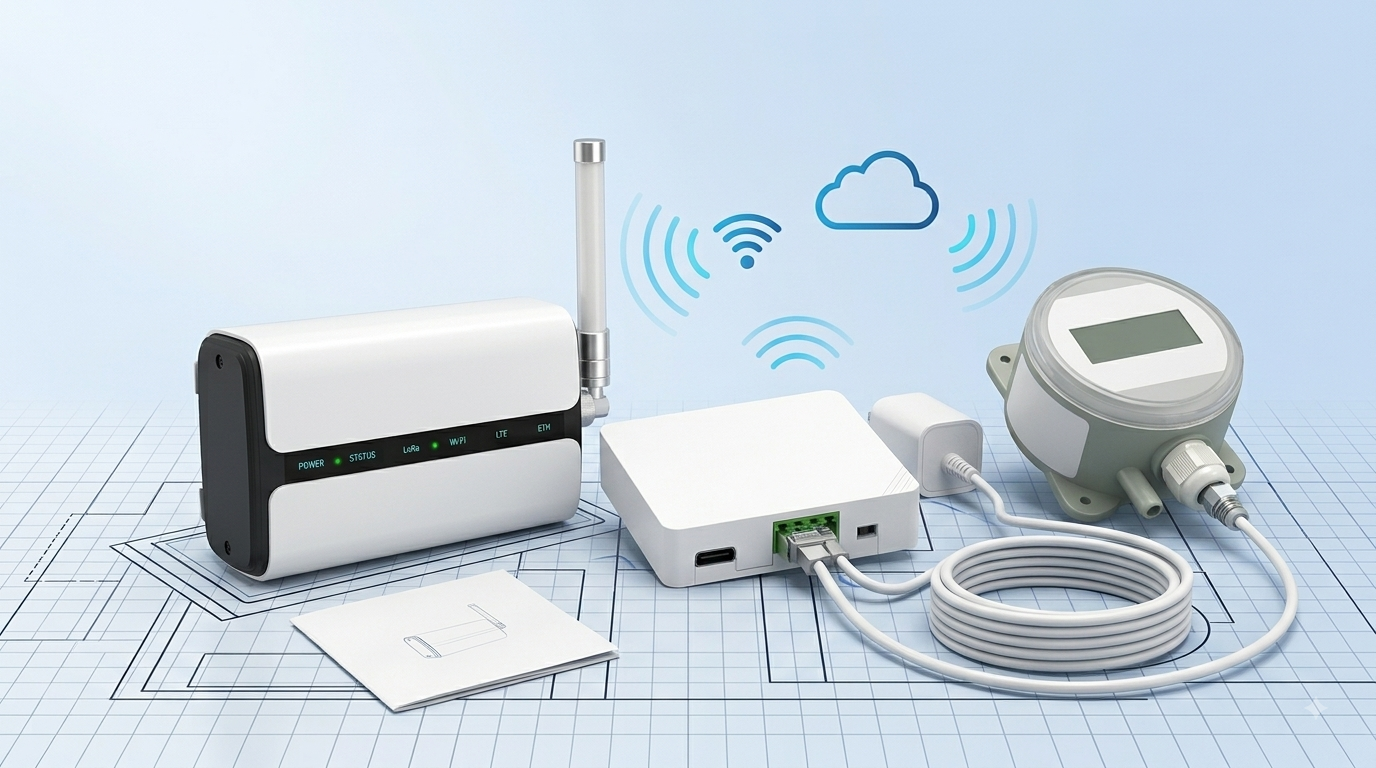

Digital Sensing (LCD Display) ➔ RS485 Data Transport (UC100 Node) ➔ Gateway (UG65) ➔ Cloud Analytics (Fainlynx Cloud)
The FLX-DPT200 continuously measures micro-pressure differential across your filter, displaying the exact Pascal value on its front LCD. The integrated wireless transceiver reads data via RS485 Modbus and streams continuous telemetry to Fainlynx Cloud (hosted on secure enterprise infrastructure), plotting degradation trend lines and sending instant alerts before airflow fails.
What’s Included in the Box

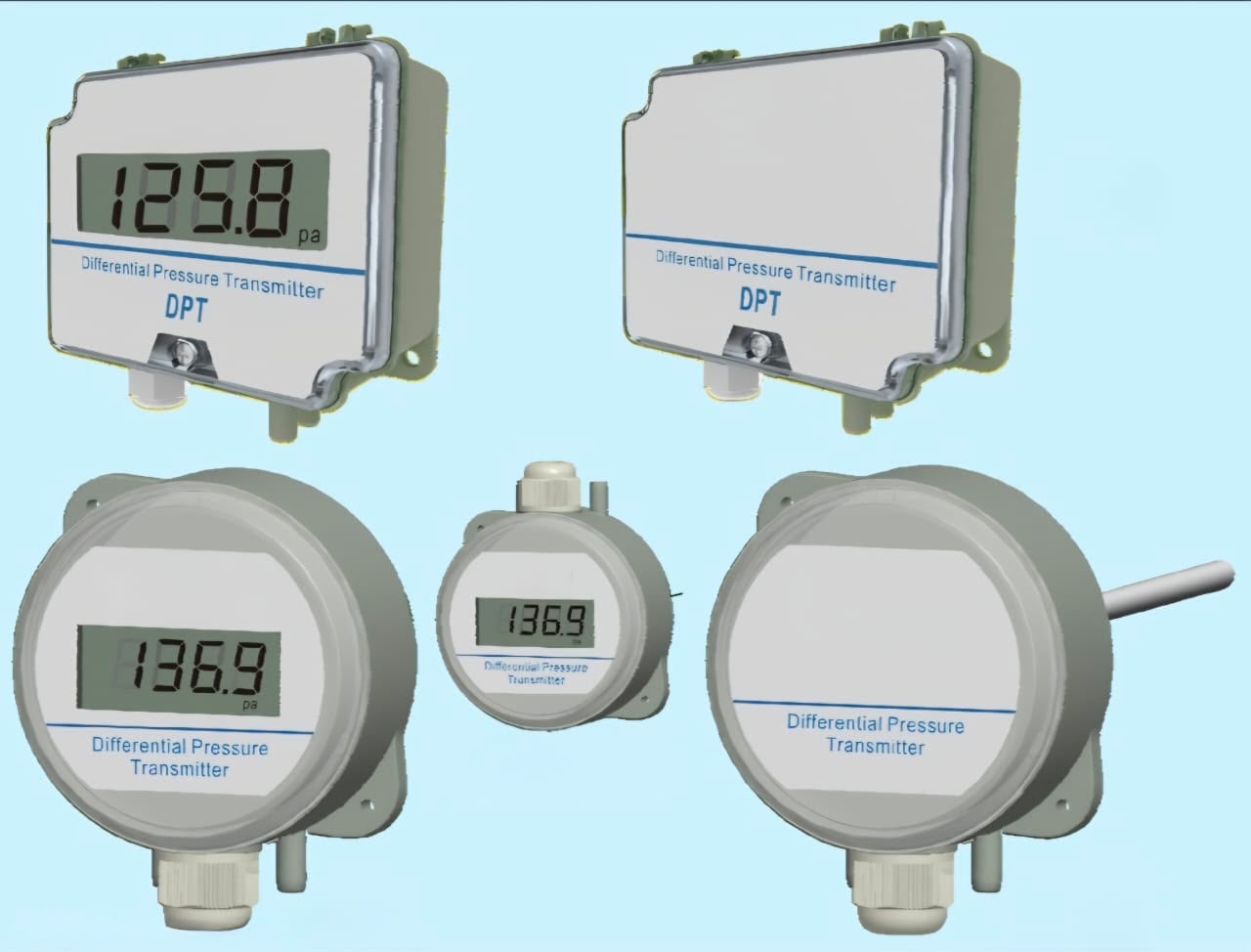

- 1 x FLX-DPT200 Digital DP Transmitter with Backlit LCD Screen, Integrated Duct Mount & 2m Clear PVC Tubing (RS485 Modbus RTU)
- 1 x FLX-UC100 RS485 Wireless IoT Transceiver (Included with Wireless Expansion & Turnkey Suites)
- 1 x Milesight UG65 LoRaWAN Gateway (Included ONLY in Turnkey Cloud Suite)

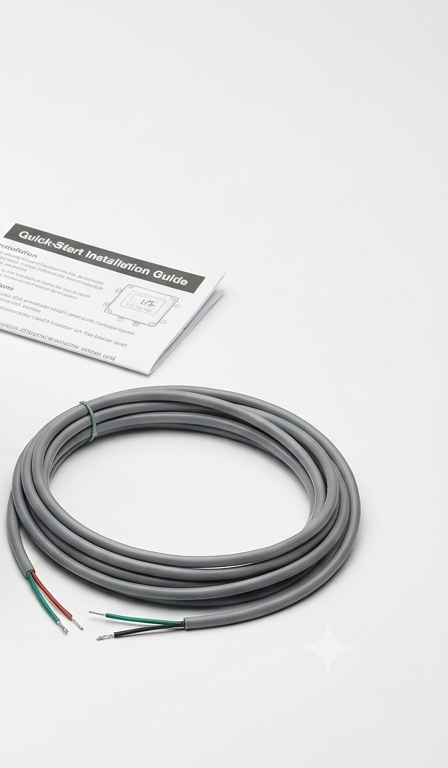

- 1 x Quick-Start Guide & Signal Transmission Warranty Certificate
Technical Specifications
| Application | Air and non-combustible / non-corrosive gases (AHU, Filters, Cleanrooms, Ducts) |
| Display | 5 digits LCD screen |
| Pressure Ranges | 0–25/60/125 Pa | 0–250/500/1000 Pa | 0–2500/5000/10000 Pa |
| Output | RS485 Modbus RTU (4-Wire) |
| Accuracy | ±1.0% FS (±2.0% FS@25Pa range) |
| Power Supply | 16-28VAC / 16-35VDC |
| Enclosure Rating | IP65 Dust & Water Resistant Housing |
| Tubing Connection | Ø 5.0 mm ID PVC Tubing (+ High Pressure / - Low Pressure) |
